Our team has a rich background in mechanical design, but we’re only just beginning! Our R&D team is busy coming up with new ideas, but here are some of our completed works that we’re proud of.
{{ range sort site.RegularPages “PAGES.ByTitle” “desc” }}
Trailer Cable Carrier
This is a device that bolts to a trailer (the kind you would tow with a pickup/van, not the semi-truck kind of trailer), that holds the brake-light/turn-signal cable head when the trailer is not in use.
This was designed in a single day and can be printed without supports.
No job is too small for our team! If you are interested in having products designed, contact us here

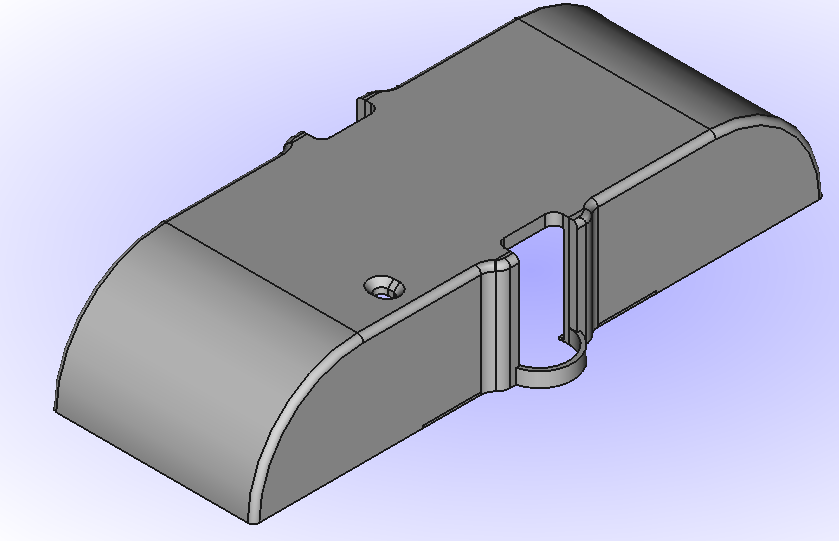

Controller Cover
This part was designed to cover an elecectronic controller in a fastfood restaurant so that it could have a smooth surface that is easily cleanable. It also directs the cables out from the view of the customer.
The part is printed with PVB filament that can be made very smooth by just a little bit of rubbing alcohol.
The part simply snaps onto the controller.
Headset Battery Covers
These parts were designed to replace out-of-production battery covers for the Panasonic WX-CH3050 and WX-CH450. CSI of the Southeast had plenty of these headsets but were very low on these battery covers, which were essential to the operation of the headsets. These parts print quickly and simply and are a drop in replacement.

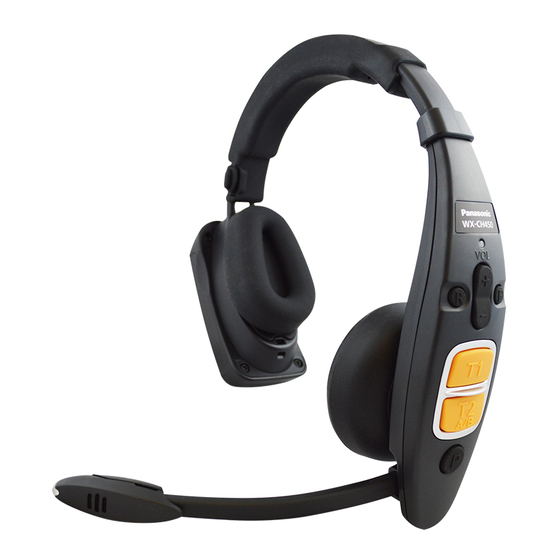

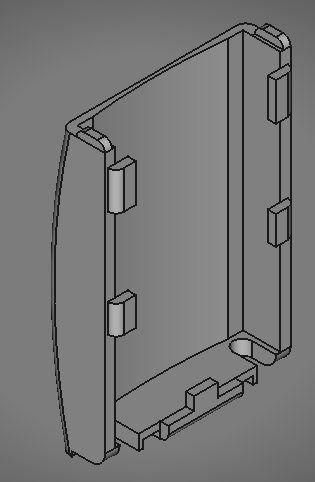

Panasonic WX-CH450 Battery Cover

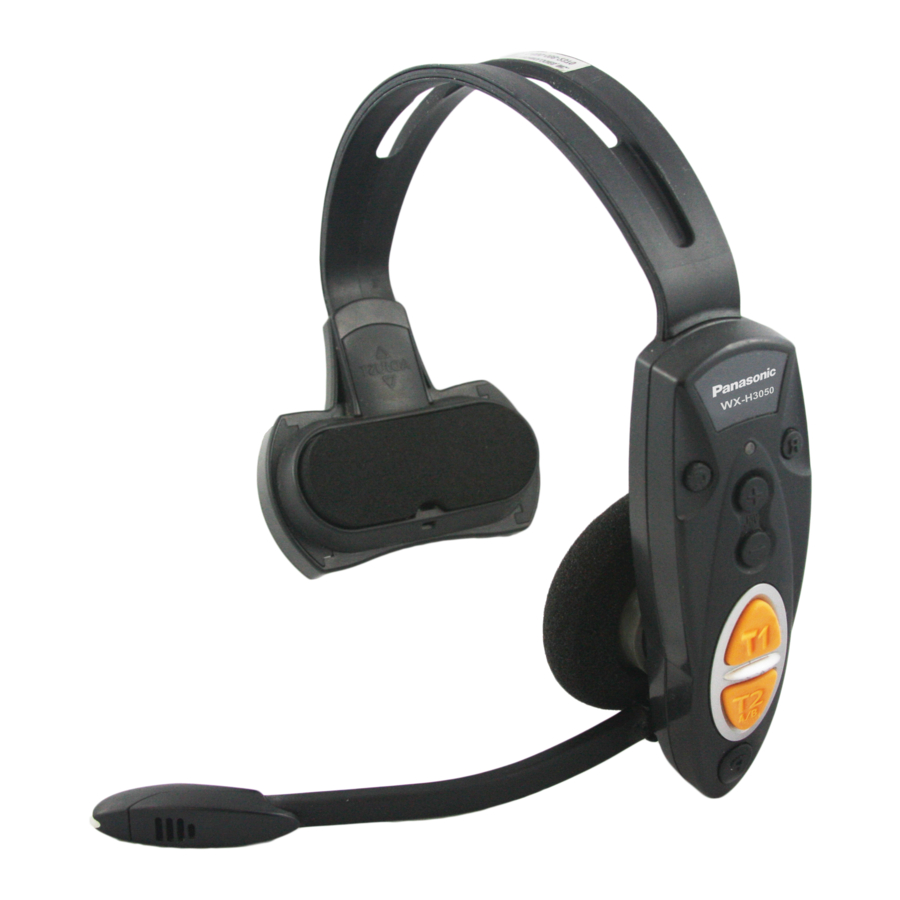

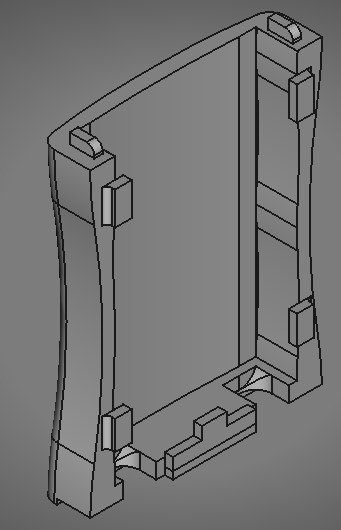

Panasonic WX-CH3050 Battery Cover

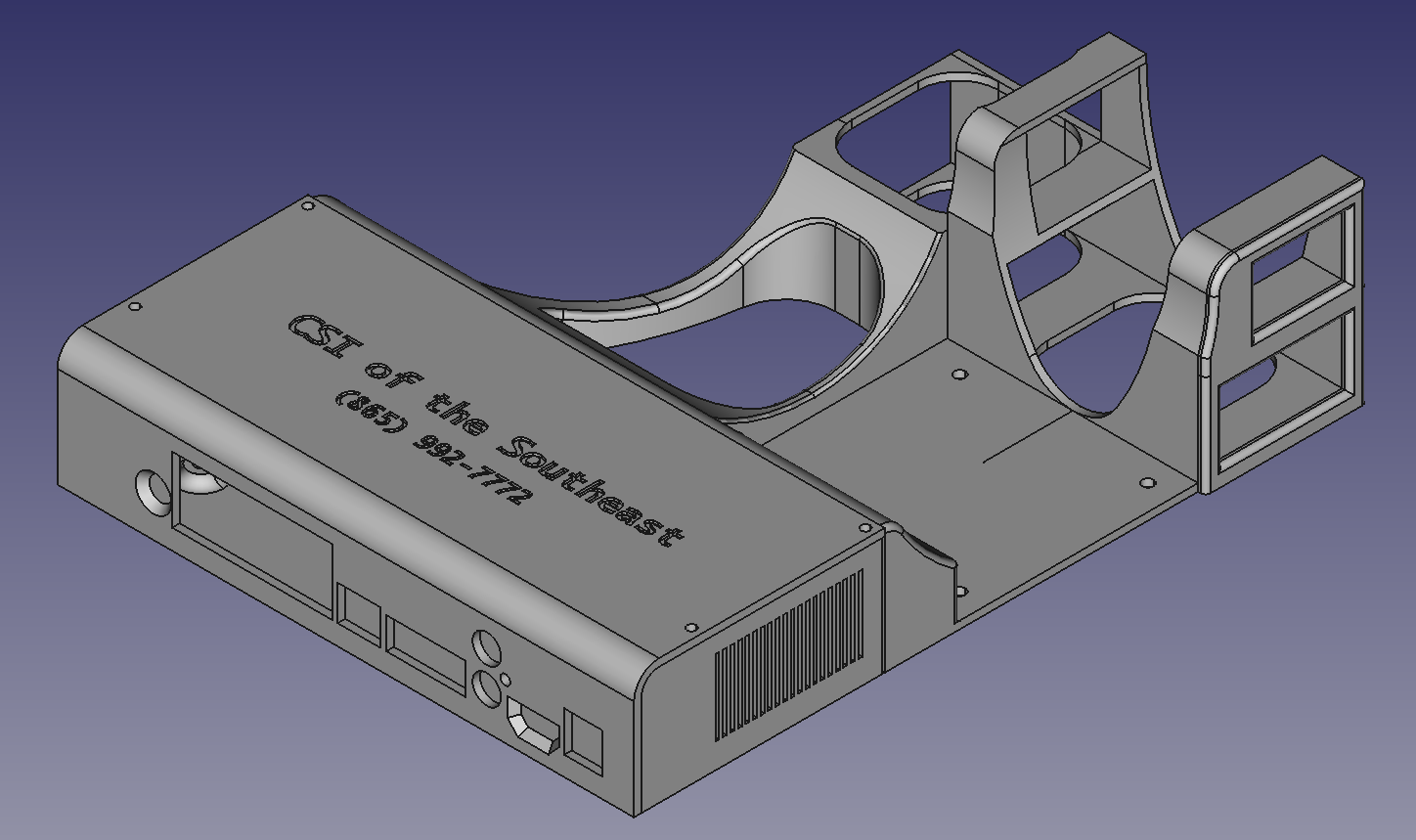

NVR Case
NVR Case for Drive-Through Monitoring
This was a project for CSI of the Southeast.
The Problem
They needed a way to cleanly mount their miniature Network Video Recorder to the back of a monitor that hangs in the drive-through bay of a fast-food restaurant, so that the drive-through operator could see on the screen the cars that were ordering and approaching the window.
The only previous option was to run a rather-expensive ethernet-to-HDMI connector half-way across the restaurant.
Read more…
